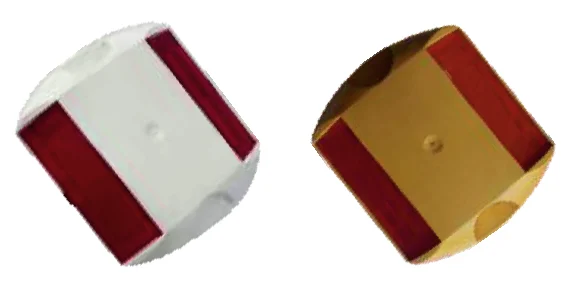

S-100
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 90 × 18 mm
- Direction
- Two-way prismatic reflector
Products
Road Studs & Road Delineators
Road visibility products that mark lanes, edges, medians and hazards in headlights and after dark: raised pavement markers, solar studs, delineator posts and reflectors.
Road Studs & Delineators
ABS Plastic Road Studs / RPM
ABS plastic road studs (raised pavement markers) improve lane, centre-line and edge visibility in headlights. Models are offered with integral or external shanks and in four colour combinations.
Typical applications
- Lane and centre lines
- Road edges and medians
- Junctions and curves
- Parking areas

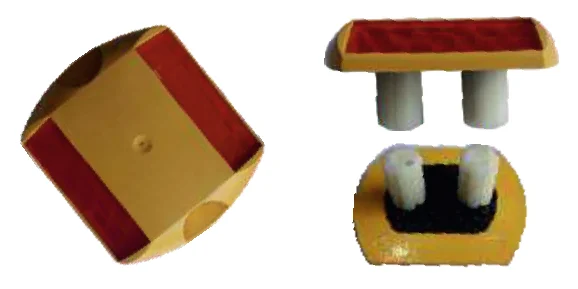

S-100AWith external shank
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 90 × 18 mm
- Direction
- Two-way prismatic reflector

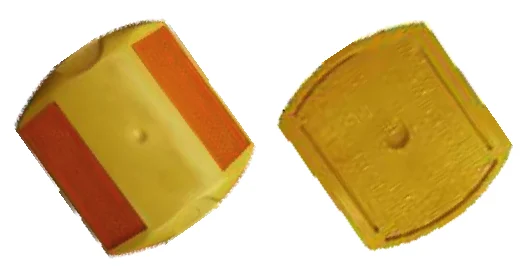

S-101
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 90 × 18 mm
- Direction
- Two-way prismatic reflector

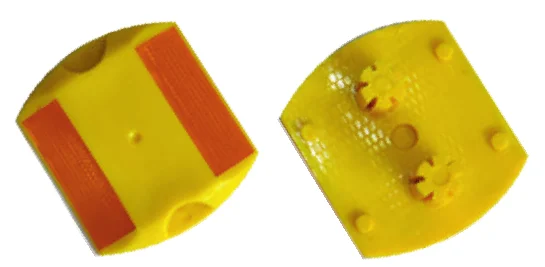

S-101 TMDS
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 90 × 18 mm
- Direction
- Two-way prismatic reflector

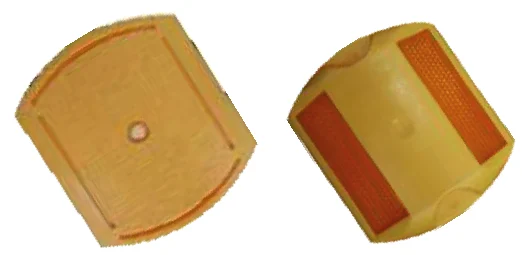

S-102
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 90 × 18 mm
- Direction
- Two-way prismatic reflector

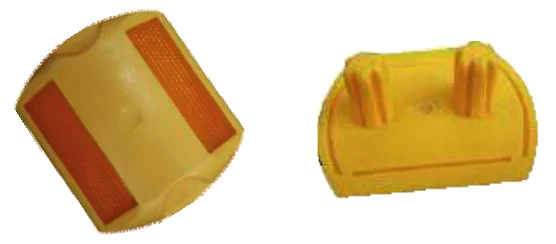

S-102 TMDS
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 90 × 18 mm
- Direction
- Two-way prismatic reflector

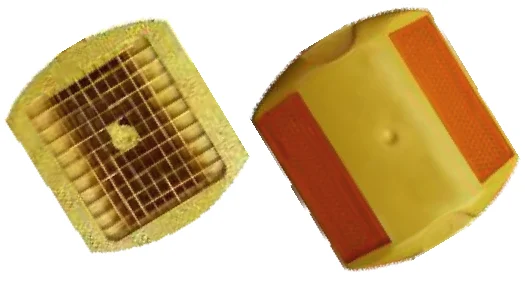

S-103
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 90 × 18 mm
- Direction
- Two-way prismatic reflector

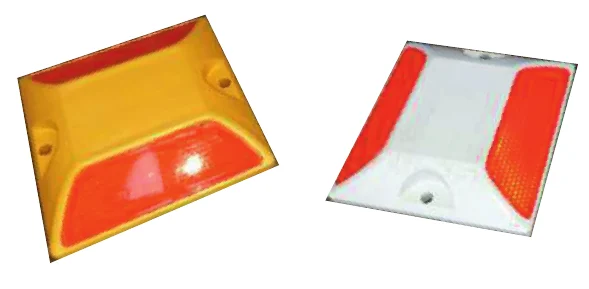

S-104
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 100 × 20 mm
- Direction
- Two-way prismatic reflector

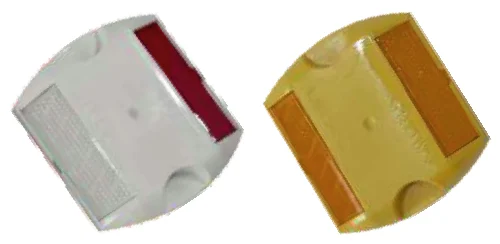

S-AL280
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 90 × 18 mm
- Direction
- Two-way prismatic reflector
- Tested by
- ARAI-Pune

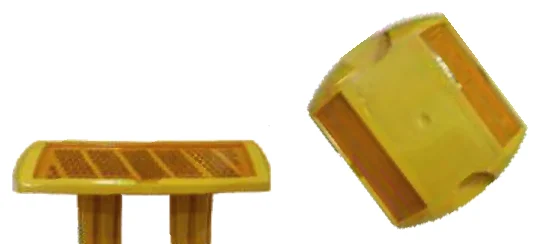

S-AL280 TMDS
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 90 × 18 mm
- Direction
- Two-way prismatic reflector
- Tested by
- ARAI-Pune
Road Studs & Delineators
Aluminium Road Studs
Aluminium-bodied road studs for heavier-duty locations, available with glass-bead, acrylic prismatic, polycarbonate prismatic or retro-reflective tape reflectors, and with nail or shank fixing.
Typical applications
- Highways and expressways
- Toll plazas
- Bridges and flyovers
- Industrial roads

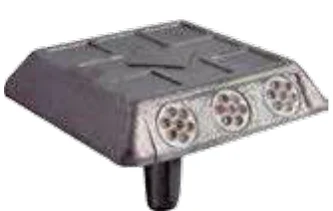

S-117
- Specification
- Two-side 21 glass beads each side, with inbuilt shank
- Dimension
- 100 × 100 × 20 mm
- Colours
- Yellow, White, Red
S-118
- Specification
- Two-side 21 glass beads each side, with nail
- Dimension
- 100 × 100 × 20 mm
- Colours
- Yellow, White, Red

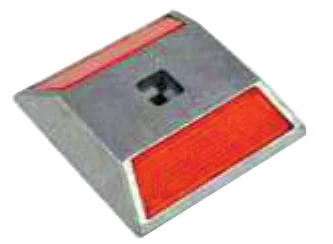

S-122
- Specification
- Two-side polycarbonate prismatic reflector, with nail
- Dimension
- 100 × 100 × 20 mm
- Colours
- Yellow, White, Red

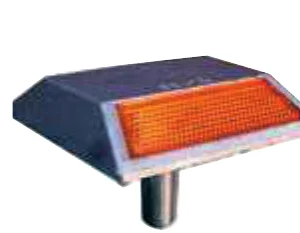

S-123
- Specification
- Two-side acrylic prismatic reflector, with inbuilt shank
- Dimension
- 100 × 100 × 20 mm
- Colours
- Yellow, White, Red

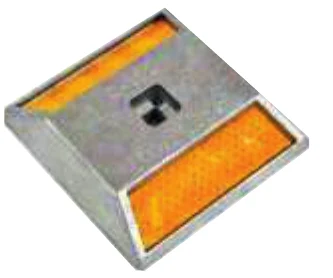

S-124
- Specification
- Two-side retro-reflective tape, with nail
- Dimension
- 100 × 100 × 20 mm
- Colours
- Yellow, White, Red

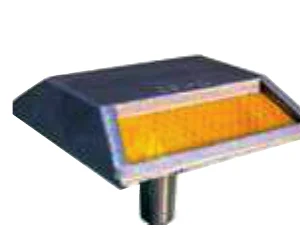

S-126
- Specification
- Two-side retro-reflective tape, with nail
- Dimension
- 100 × 100 × 20 mm
- Colours
- Yellow, White, Red

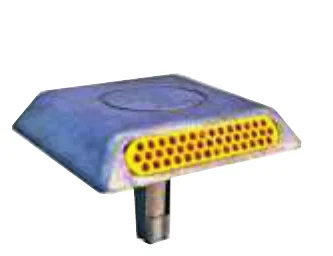

S-127
- Specification
- Two-way 43 glass beads each side, with shank
- Dimension
- 100 × 100 × 20 mm
- Colours
- Yellow, White, Red

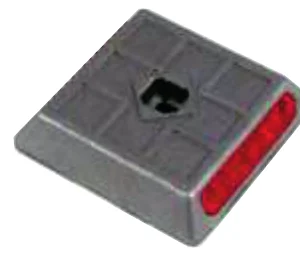

S-128
- Specification
- Two-way 43 glass beads each side, with shank
- Dimension
- 100 × 100 × 20 mm
- Colours
- Yellow, White, Red

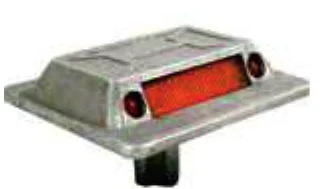

S-129
- Specification
- Two-side acrylic prismatic reflector, with shank
- Dimension
- 125 × 125 × 30 mm
- Colours
- Yellow, White, Red
S-131
- Specification
- Two-side 21 glass beads each side, with nail
- Dimension
- 100 × 75 × 20 mm
- Colours
- Yellow, White, Red

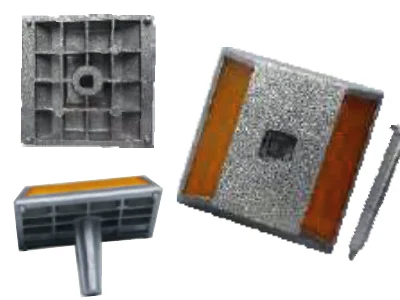

S-111With external shank
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 90 × 18 mm
- Direction
- Two-way prismatic reflector

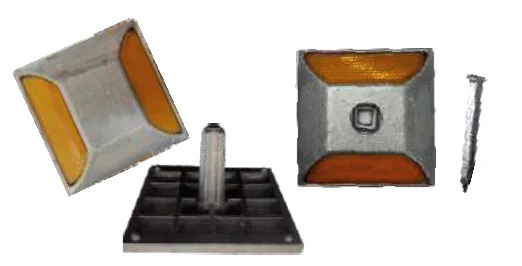

S-112With shank & nail
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 90 × 18 mm
- Direction
- Two-way prismatic reflector

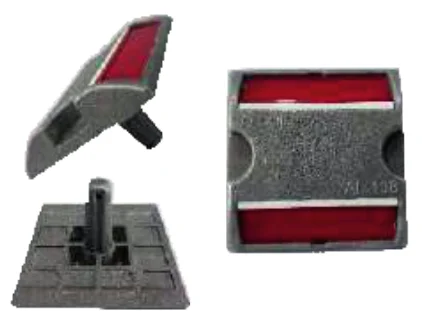

S-AL108With inbuilt shank
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 100 × 20 mm
- Direction
- Two-way prismatic reflector
Road Studs & Delineators
Solar LED Road Studs
Solar LED road studs charge during the day and light their LEDs at night, giving active delineation on curves, medians, approaches and poorly lit stretches.
Typical applications
- Sharp curves and hill roads
- Medians and dividers
- Unlit highway stretches
- Bridges and approaches

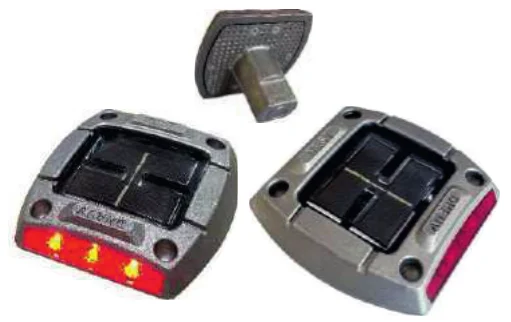

DHRUV by NEST
- Colours
- Red, Amber, Blue, Green, White
- Dimension
- 125 × 125 × 25 mm (shank 65 mm)
- Ingress
- Conforms to IP67 as per IEC 60529, Edition 2.1 2001-02
- Certificate No.
- C1/0000245218
- Warranty
- One year

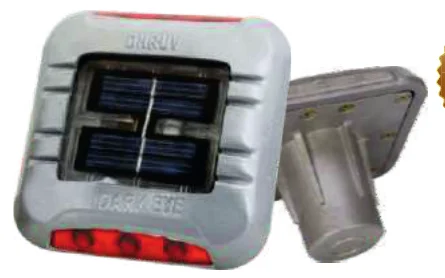

DHRUV by DARK EYE
- Colours
- Red, Amber, Blue, Green, White
- Dimension
- 125 × 125 × 25 mm (shank 65 mm)
- Ingress
- Conforms to IP67 as per IEC 60529, Edition 2.1 2001-02
- Certificate No.
- C1/0000245218
- Warranty
- One year

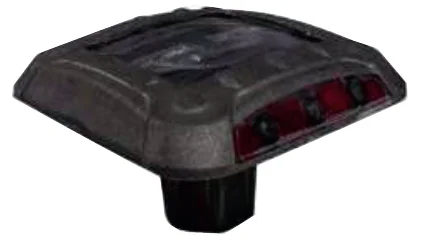

S-SL200With shank
- Colours
- Red, Amber
- Dimension
- 125 × 135 × 24 mm (10 tons)
- Direction
- Two-way prismatic reflector
- Light
- Super-luminosity LED
- Work time
- 108 hours, IP57 (1,000 mm view distance)
- Warranty
- One year

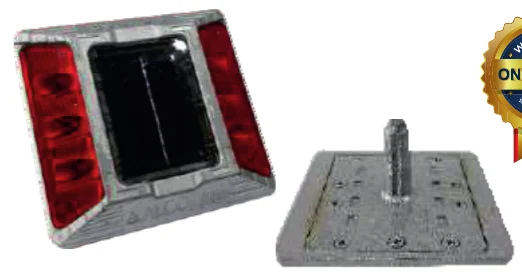

S-SL201
- Solar stud
- 3 LEDs each side
- Colours
- Red & Amber
- Dimension
- 132 × 122 × 32 mm
- Direction
- Two-way reflective
- Warranty
- One year

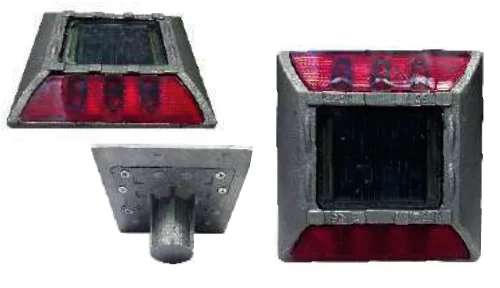

S-SL202With shank
- Colours
- Red, Amber
- Dimension
- 122 × 132 × 32 mm
- Direction
- Two-way prismatic reflector
- LED
- 3 nos. each side
Road Studs & Delineators
3M Road Safety Products & Reflective Materials
EKTA PLAST supplies a range of 3M road safety products: median markers, raised pavement markers, delineators, retro-reflective sheeting grades, conspicuity tape and the resin kit used for fixing RPMs.
Typical applications
- Medians and lane separators
- Sign faces
- Vehicle conspicuity
- RPM fixing

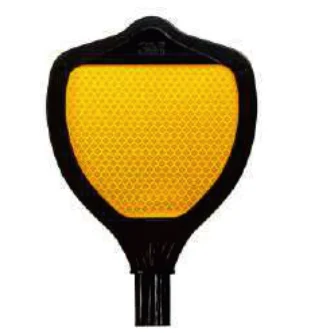

3M Flexible Median Marker
- Sheeting
- Fluorescent Type-XI DG3 reflective sheeting
- Variants
- Both-side reflective

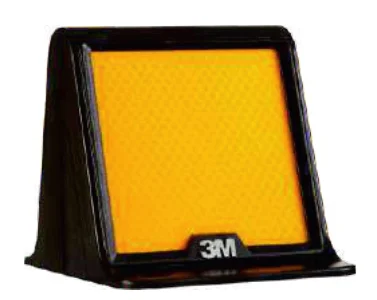

3M Median Marker
- Sheeting
- Yellow retro-reflective Type-XI
- Variants
- Both-side / single-side reflective sheeting

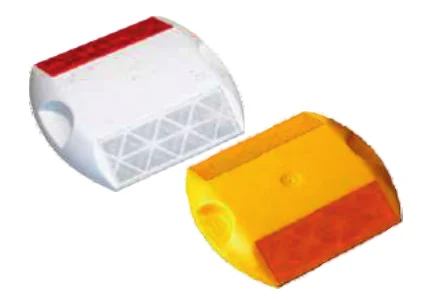

3M RPM 290 ILC
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 90 × 18 mm
- Direction
- Two-way prismatic reflector

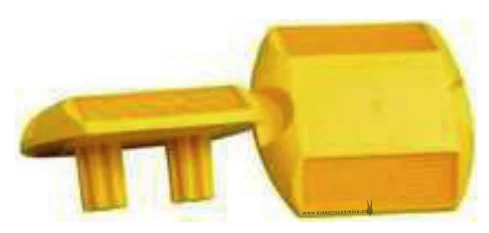

3M Twin Molded Shank
- Colours
- Red, White, Yellow, Red+White
- Dimension
- 100 × 90 × 18 mm
- Direction
- Two-way prismatic reflector

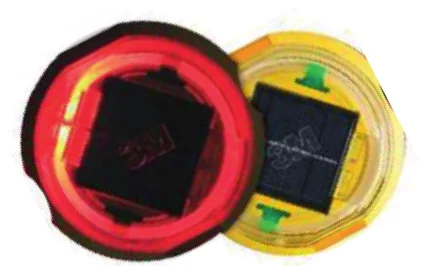

3M Solar RPMSolar Raised Pavement Marker
- Colours
- Yellow with yellow, white with white, white with red reflector
- Approval (per catalogue)
- IRC accredited

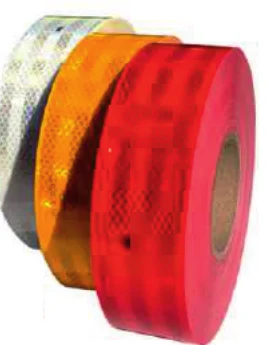

CT-9833M-983 Conspicuity Tape
- Colours
- Red, Yellow, White
- Size
- 50.8 mm × 50 m

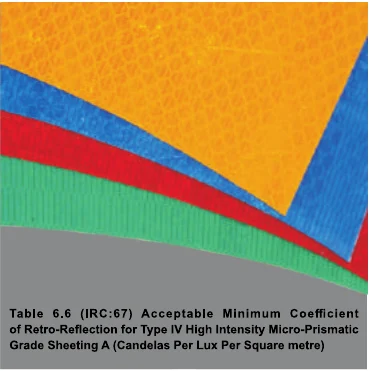

3M Type-IVHIP Type IV Sheeting
- Colours
- White, Yellow, Red, Orange, Blue, Green
- Service life
- 7+ years (ASTM D4956)

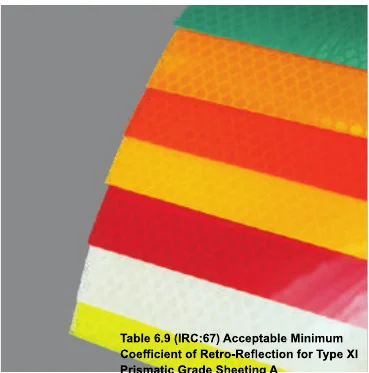

3M Type-XIDiamond Grade DG Type XI Sheeting
- Colours
- White, Yellow, Red, Blue, Green, Fluorescent Yellow, Yellow Green, Orange
- Service life
- 10+ years (ASTM D4956)
Product image
to be supplied
3M ECFElectrocut Film (ECF)
- Colours
- Yellow, Red, Orange, Blue, Green, Black, Brown
- Dimensions
- 1.22 m × 45.7 m

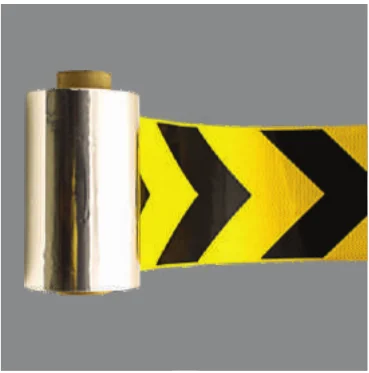

3M DG (AFP)DG Aluminium-Backed Flexible
- Variants
- Slant, Arrow, Plain
- Standard
- As per IRC

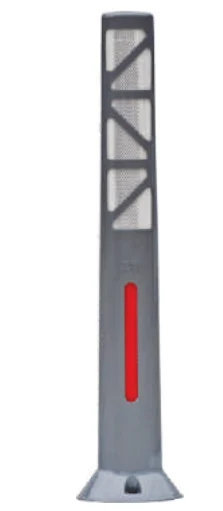

3M RRD3M Rigid Retro Delineator
- Colours
- White-red combined, dual-sided
- Body
- Powder-coated metal

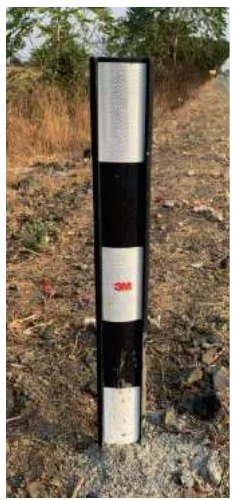

3M-IRC79:20193M Standard Delineator
- Tape size
- 80 × 150 mm × 6 pcs
- Size
- 1,000 mm

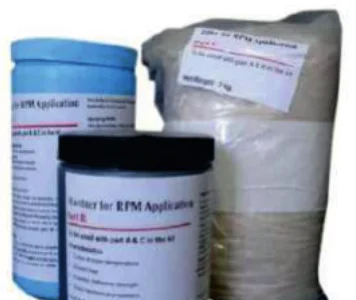

3M EpoxyResin & Hardener Kit (RPM fixing)
- Use
- Fixing raised pavement markers
Road Studs & Delineators
Guardrail Reflectors
Reflectors fixed to W-beam guardrails and crash barriers so the barrier line is visible in headlights.
Typical applications
- Highway guardrails
- Bridge parapets
- Median crash barriers
S-331
- Specification
- Metal bracket with prismatic reflective sheeting, with tape protector
S-332
- Specification
- Metal bracket with prismatic reflective sheeting, without tape protector
S-334
- Specification
- Acrylic reflector, double side
S-335
- Specification
- Acrylic reflector, single side
Road Studs & Delineators
Solar Delineators & Solar Blinkers
Solar delineators and blinkers provide flashing warning lights at hazards without mains power. The S-700 light is offered with pole, wall, clamp and rail-clamp mountings.
Typical applications
- Hazard and diversion warning
- Barricades and work zones
- Dangerous curves
- Junctions

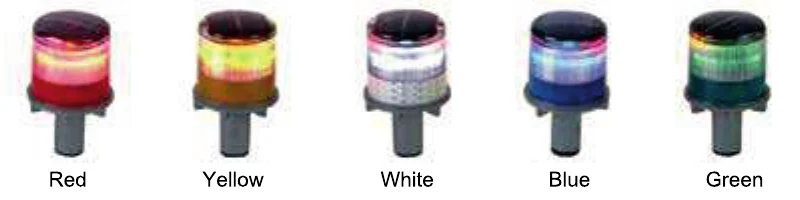

S-700Solar Delineator
- LED visibility
- > 500 m
- Flashing rate
- Around 74 times per minute
- Temperature range
- −20 °C to 85 °C
- Colours
- Red, Yellow, White, Green, Blue
- Solar panel
- 2.5 V, 120 mA
- Battery
- 1.2 V, 1,200 mAh
- Material
- Polycarbonate / ABS
- Dimension
- Dia. 90 mm, height 150 mm

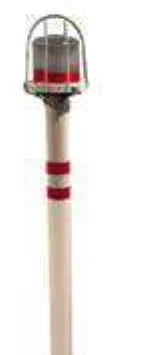

S-702Basic + Pole
- Mounting
- Pole
S-703Basic + Wall Mounting
- Mounting
- Wall

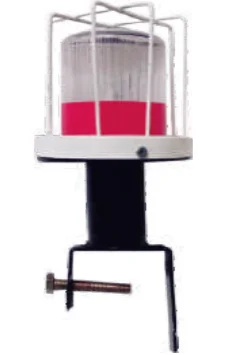

S-704Basic + Clamp Mounting
- Mounting
- Clamp

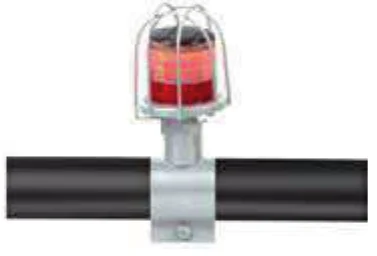

S-705Basic + Rail Clamp
- Mounting
- Rail clamp

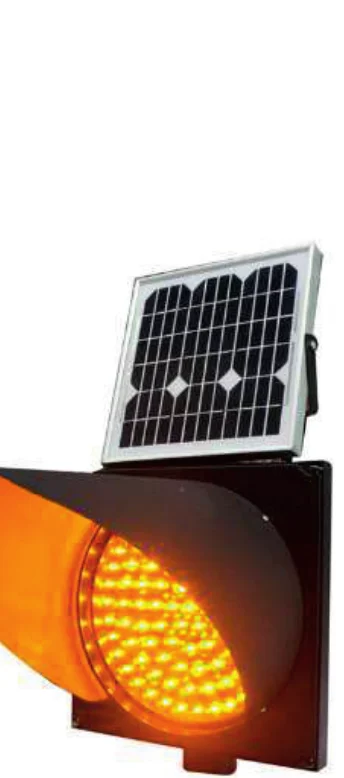

S-713Solar Blinker
- Solar cell
- 15 W mono-crystalline, 18 V / 900 mA
- Battery
- Lead-acid, 12 V
- LED
- 5 mm, 172 LEDs or as required
- Luminous intensity
- 8,000 – 9,000 mcd
- Flash frequency
- 38 – 40 per minute
- Operating time
- Continuous for over 4 days in wet or rainy weather after full charge
- Temperature range
- −20 °C to +70 °C
- Material
- PC plastic, anti-UV
- Warranty
- One year
- Application
- Dangerous roads
Road Studs & Delineators
IRC79 / Metal Delineator Posts
Delineator posts mark road edges, curves and approaches. Posts are available in metal and rigid designs with HIP or Type-XI retro-reflective tape; S-302 can be customised.
Typical applications
- Road edges and shoulders
- Curves and embankments
- Bridge approaches
- Hill roads

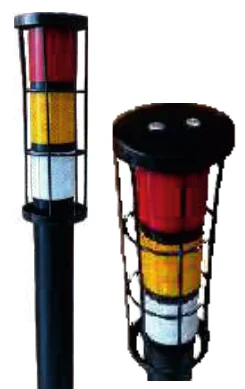

S-302Customised product
- Tape
- HIP 3 colour
- Size
- 48 OD × 750 mm / customised
- Mesh size
- 200 mm

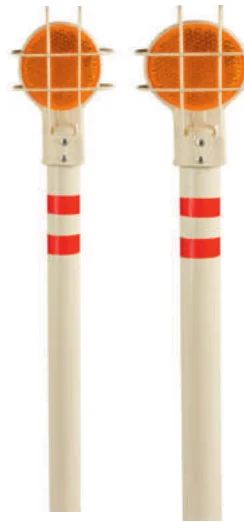

S-301
- Reflector
- Two-way acrylic prismatic reflector
- Size
- 48 OD × 750 / 1,000 / 1,200 mm
- Colour
- Red, Yellow, Red + Yellow

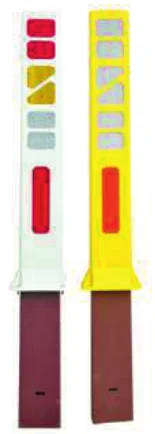

S-RIGID T11
- Tape
- HIP 3 colour
- Size
- 1,200 mm
- Width
- 110 × 34 mm
- Reflective area
- 300 sq. cm

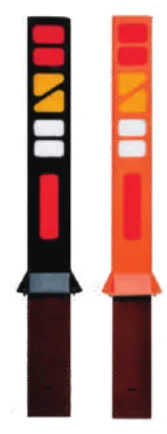

S-RIGID T4
- Tape
- HIP 3 colour
- Size
- 1,200 mm
- Width
- 110 × 34 mm
- Reflective area
- 300 sq. cm
S-IRC79
- Tape
- Type-XI retro-reflective
- Tape size
- 80 × 150 mm × 6 pcs
- Size
- 1,000 mm

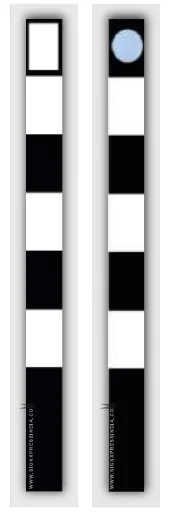

S-IRC67
- Size
- 100 × 25 × 1,200 mm
- Tape
- HIP 80 × 120 / 80 mm circle
- Colour
- Black powder coating
- White paint
- 150 × 100 mm
Enquire About Road Studs & Delineators
Share your product list, quantities and project location. Our team will respond with availability and a quotation.
